SMD-Y1.CAP(高容)

Ceramic Capacitor

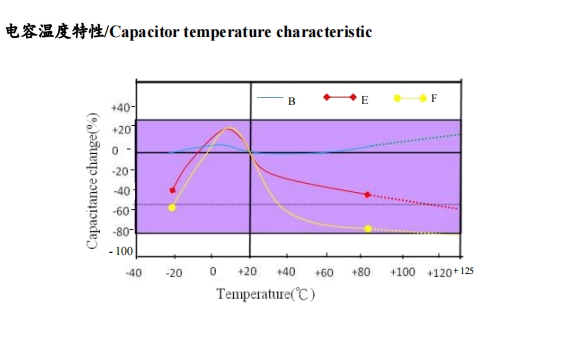

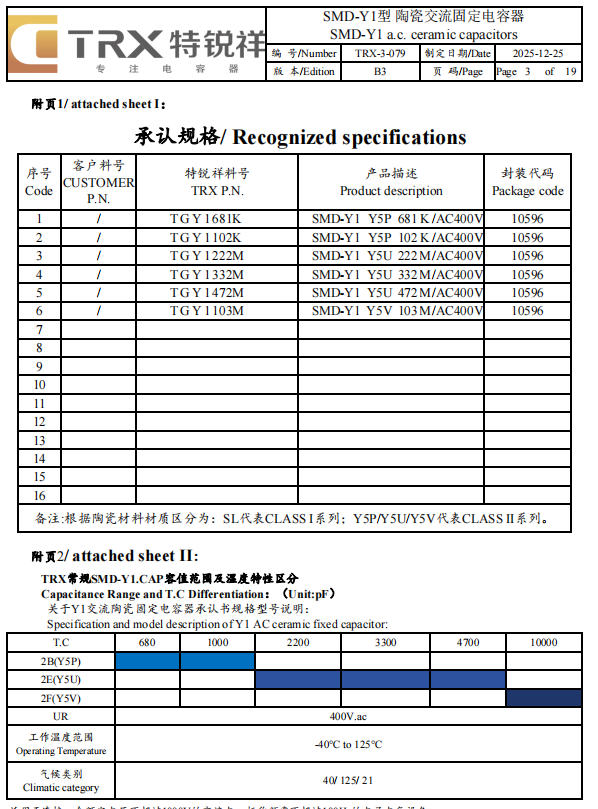

温度特性(Temperature characteristic):B(680pF~1000pF)、E(2200pF~4700pF)、F(2700pF~10000pF); 容量偏差(Tolerance):K(±10%)、M (±20%); 耐电压(Voltage):4000VAC; 绝缘电阻(Insulation resistance):≥10000MΩ; 脉冲电压(Impulse voltage):8KVAC; 阻燃等级(Passive flammability):B; 漏电流(leakage current):5mA(Max);

PDF下载

说明
