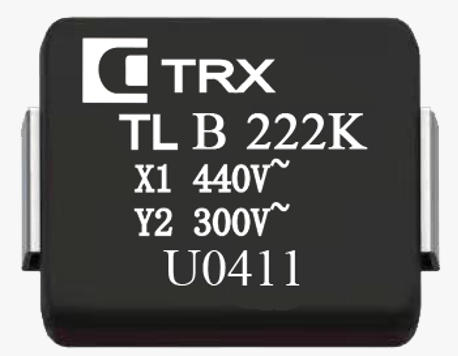

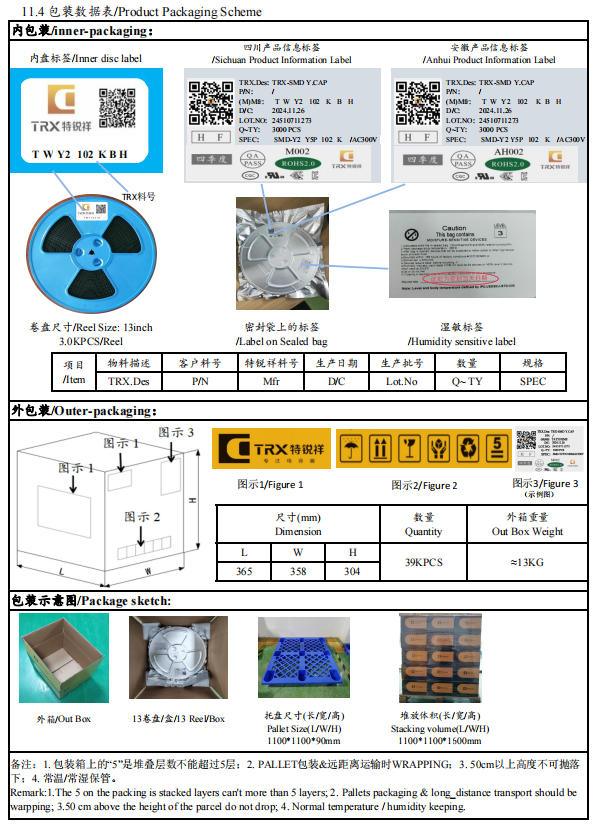

SMD-Y1.CAP

Ceramic Capacitor
温度特性(Temperature characteristic):SL、B、E、F; 容量偏差(Tolerance):J(±5%)、K(±10%)、M (±20%); 耐电压(Voltage):4000VAC; 绝缘电阻(Insulation resistance):≥6000MΩ; 脉冲电压(Impulse voltage):8KVAC; 阻燃等级(Passive flammability):B; 漏电流(leakage current):5mA(Max);

PDF下载

说明


常用规格/Common Specification

序号/CODE

客户料号

/ CUSTOMER  P.N.

特锐祥料号

/TRX P.N.

规格型号

/MODEL NO.

备注

/ REMARKS

1

/

THY1220J

SMD-Y1220J/AC400V

7.8*5.4

2

/

THY1470J

SMD-Y1470J/AC400V

7.8*5.4

3

/

THY1680J

SMD-Y1680J/AC400V

7.8*5.4

4

/

THY1101K

SMD-Y1101K/AC400V

7.8*5.4

5

/

THY1221K

SMD-Y1221K/AC400V

7.8*5.4

6

/

THY1331K

SMD-Y1331K/AC400V

7.8*5.4

7

/

THY1471K

SMD-Y1471K/AC400V

7.8*5.4

8

/

THY1681M

SMD-Y1681M/AC400V

7.8*5.4

9

/

THY1102M

SMD-Y1102M/AC400V

7.8*5.4

10

/

THY1152M

SMD-Y1152M/AC400V

7.8*5.4

11

/

THY1222M

SMD-Y1222M/AC400V

7.8*5.4




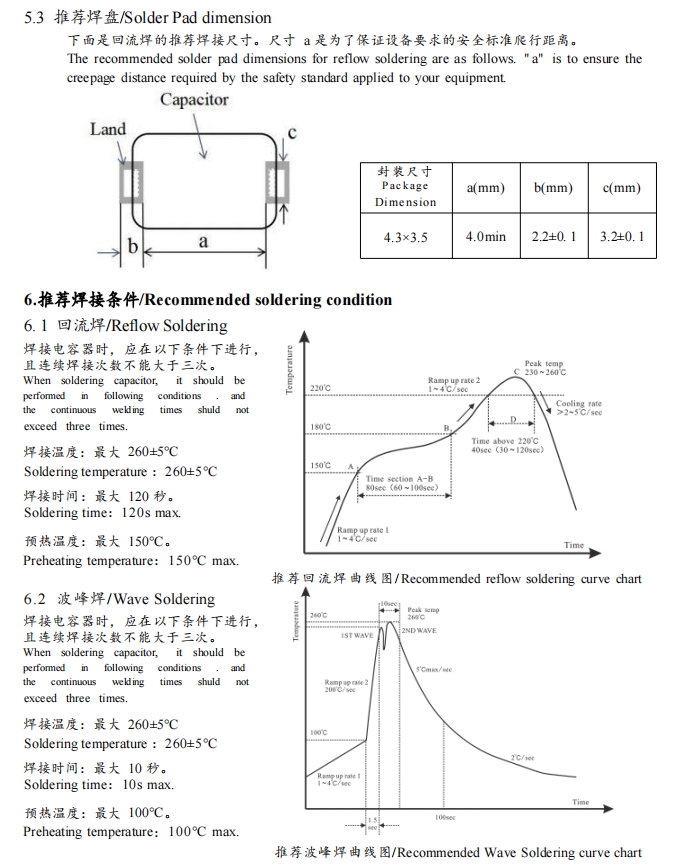

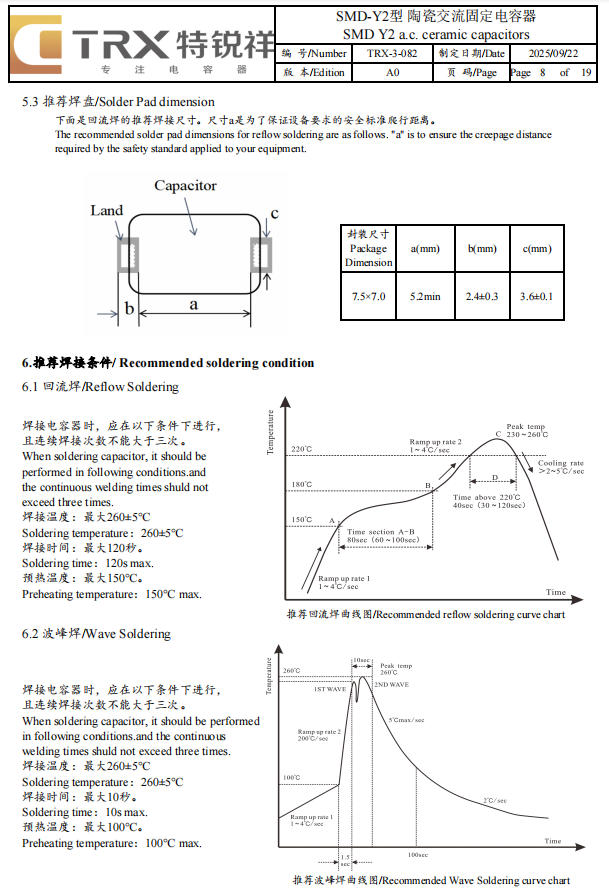

红外回流温度曲线IR Reflow Profile:(SMT-参考Reference)



NO

Item项目

Performance性能

measuring method测试方法

1

4.1Visual examination

目视检查

No visible damage

legible marking

lead frame is not oxidation and its surface is without sundries.

无可见损伤

标记清晰

引线框架无氧化、表面无杂物

unaided eye or magnifier

肉眼或放大镜

2

4.1Dimension尺寸

accorder Table 见表

vernier caliper游标卡尺

3

4.1Printing 印字

accorder design 见图

magnifier放大镜

4

4.2.1

Voltage proof

耐压

Between lead wire

引线之间

No permanent break-down or

flashover during the test period

没有永久性的损坏或测试期间无闪络

test voltage:测试电压 4000VAC

frequency: 频率50/60Hz

duration: 持续时间60 seconds

leakage current: 漏电流5mA max

Body insulation绝缘体

No permanent break-down or

flashover during the test period

没有永久性的损坏或测试期间无闪络

test voltage: 测试电压4000VAC

frequency: 频率50/60Hz

duration: 持续时间60 seconds

leakage current: 漏电流5mA max

5

4.2.2

Capacitance

电容量

Within specified tolerance

规定的公差

J: ±5%

K: ±10%

M: ±20%

Temperature:温度 25±3℃

Humidity: 湿度55±30%RH

Voltage: 电压1.0±0.2V

Frequency:频率

ClassI : 1±0.2MHZ

ClassII: 1±0.2KHZ

6

4.2.3

Dissipation factor

损耗因数

Within specified tolerance

规定的公差

SL:1.0%

Y5P: ≤2.5%

Y5U: 2.5%

Y5V: 2.5%

Temperature:温度 25±3℃

Humidity: 湿度55±30%RH

Voltage: 电压1.0±0.2V

Frequency:频率

ClassI : 1±0.2MHZ

ClassII: 1±0.2KHZ

7

4.2.4

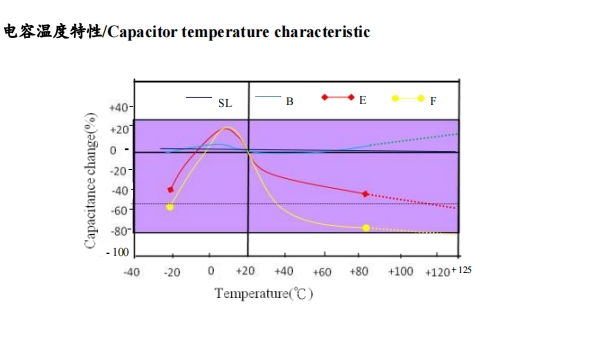

Capacitor-temperature characteristic

电容器的温度特性

SL:+140~-1000(ppm/℃)

Y5P: ±10%

Y5U: +22%~-56%

Y5V: +22%~-82%

Temperature tolerance:耐温性±2℃

step12345Tem(℃)+20-25+20+85+20

△=CX-C0/C0

CX capacitor for step2,4

C0 capacitor for step 3

NO

Item项目

Performance性能

measuring method测试方法

8

4.2.5

Insulation resistance

绝缘电阻

Between lead wire

引线之间

6000MΩ MIN

Measuring voltage: 测量电压100VDC

Frequency: 频率50/60Hz

duration: 持续时间60 seconds

leakage current: 漏电流5mA max

Body insulation

绝缘体

6000MΩ MIN

9

4.3

Robustness of terminations

端坚固性

Tensile

承受拉力

force:>10N

Fixed capacitor’body and Lead wire , lower lead wire.固定电容体引线和引线端

10

4.4

Resistance to

soldering heat

耐焊接热

visual examination目视检查

no visible damage无可见损伤

Solder temperature焊接温度260±5℃

Immersion time:浸入时间10±1seconds

The depth of immersion: 浸入深度2+0-0.5mm from the seating plane 底座下2+0-0.5mm

Using a thermal insulating screen of

1.5±0.5mm thickens使用1.5±0.5mm厚隔热屏

Capacitor shall be placed at 25±3℃for 24±2h before initial measurements.测量前电容应放置在25±324±2小时

voltage proof

耐压

accorder 4.2.1

4.2.1

Capacitance

电容量

SL:±5%

Y5P: ±10%

Y5U: ±20%

Y5V: ±20%

dissipation factor

损耗因数

SL:1.0%

Y5P: ≤2.5%

Y5U:2.5%

Y5V: 2.5%

Insulation resistance

绝缘电阻

accorder 4.2.54.2.5

11

4.5

Solderability

可焊性

Good tinning as evidenced by free flowing of the solder with wetting of the terminations or solder shall flow within 3s.

包锡良好,在3秒内流合。

Bath temperature: 浸泡温度245±5℃

Immersion time: 浸泡时间2±0.5seconds

Depth of immersion(from the seating

plane or component body): 浸入深度(从座位或本体):

Capacitors below 20-0.5mm,using a

thermal insulating screen of 1.5±0.5mm thickness. 电容器在20-0.5mm下,使用隔热屏1.5±0.5mm厚度。

NO

Item项目

Performance性能

measuring method测试方法



12

4.6

Rapid change of

temperature

温度的快速变化



visual examination目视检查

No visible damage无可见损伤

upper category temperature上限类别温度+125±3℃

lower category temperature下限类别温度  -25±3℃

number of cycles :5

duration of exposure at the temperature limits30minutes在温度范围的曝光时间:30分钟

Capacitor shall be placed at 25±3℃for 24±2h before initial measurements. 测量前电容应放置在25±324±2小时



voltage proof耐压

accorder 4.2.14.2.1

Capacitance

电容量

SL:±5%

Y5P: ±10%

Y5U: ±20%

Y5V: ±20%

dissipation factor

损耗因数

SL:1.0%

Y5P: ≤2.5%

Y5U:2.5%

Y5V: 2.5%

Insulation resistance

绝缘电阻

accorder 4.2.5

13

4.7

Vibration

振动

Capacitor shall not visible

damage电容器无可见损伤

Frequency rangs: 频率范围10→55→10Hz

swing:振幅0.75mm,

The total duration shall be 6 hours.

总时间为6小时

duration of exposure at X,Y,Z2hoursXYZ曝光时间为2小时

14

4.12

Damp heat

(steady state)

 湿热(稳态)

visual examination目视检查

No visible damage

无可见损伤

test temperature:测试温度 40±2℃

humidity: 湿度95±3%RH

duration:

持续时间500+24/-0hours

voltage: 500VACURfor one half of the samples.

样本的一半UR400V

capacitor shall be placed at 25±3℃for 24±2hours before measurements.

测量前电容应放置在25±324±2小时

NO

Item项目

Performance性能

measuring method测试方法

15

4.13

Impulse voltage

脉冲电压



No permanent breakdown or

flashover during the test period.

试验期间没有永久性击穿或闪络

Peak impulse voltage:

脉冲峰值电压8.0KV

Impulses distance :

脉冲间隔时间10seconds

Impulses times:

脉冲次数:24

If any three successive impulses are shown by the oscilloscope monitor to have had a waveform indicating that no self-healing breakdowns or flashovers have taken place in the capacitor, then no further impulses shall be applied and the capacitor shall be counted as conforming.

如果连续三次的冲击示波器监测显示有波形表明在电容器没有发生自愈的故障或闪络,并没有进一步的脉冲,电容器应算作合格

If all 24 impulses have been applied to the capacitor and 3 or more of them are of a waveform indicating that no self-healing breakdowns or flashovers have occurred, then the capacitor shall be counted as conforming.

如果所有24个脉冲被应用到电容器,显示3个或更多的波形表示没有自愈的故障或闪络发生,电容器应算作不合格。

If less than three impulses are of the required waveform, then the capacitor shall be counted as a nonconforming item.

如果少于三的冲动所要求的波形,然后电容器应视为不合格项目。

NO

Item项目

Performance性能

measuring method测试方法

16

4.14

Endurance

持久性

visual examination目视检查

No visible damage

无可见损伤

Test temperature:测试温度 125±3℃

Duration:持续时间 1000+24/-0hours

test voltage: 测试电压

680VAC1.7UR),except that once every

hour the voltage shall be increased to

1000v r.m.s. for 0.1s.

680 VAC1.7UR),除了每小时一次的电压应增加至1000V的均方根0.1s

Each of these voltage shall be applied

To each capacitor individually through

a resistor of 47Ω±5%.这些电压应施通过加到每个电容器分别47Ω±5%电阻

Capacitor shall be placed at 25±3℃for

24±2hours before measurements. 测量前电容应放置在25±324±2小时

Capacitance

电容量

△=(CX-C0)/C0

: ±10%

voltage proof

耐压

accorder 4.2.1

Insulation resistance

绝缘电阻

≥3000MΩ

△=(RX-R0)/R0

30%

17

4.15

Charge and

Discharge

充放电

Capacitance

电容量

△=CX-C0/C0

△: ±10%

Charge voltage:充电电压 570VAC(√2UR)

number of cycles:循环次数10000

the rate of approximately: 大概速度

one operation per second.每秒一次操作

Each cycle shall consist of charging and

discharging the capacitor.每个周期电容器将充放电

Each capacitor shall be individually

charged by applying the test voltage

through a resistor with the value

每个电容器应通过与电阻值施加测试电压单独充电









Capacitor shall be placed at 25±3℃for

24±2hours before measurements.测量前电容应放置在25±324±2小时

Insulation resistance

绝缘电阻

≥3000MΩ

△=RX-R0/R0

30%

18

4.17

Passive flammability

阻燃性

category级别B

The burning time of any specimen shall not exceed the time specified. 任何试样的燃烧时间不超过指定的时间。

Burning droplets or glowing parts falling down shall not ignite the tissue paper. 液滴燃烧或灼热的部分为不点燃纸巾。

category级别B

volume ranges

容量范围

flame time

火焰时间

Maximum burning time最大燃烧时间

V<250mm3

10S

10S

250<V≤500mm3

20S

10S

500<V≤1750mm3

30S

10S

V>1750mm3

60S

10S

NO

Item项目

Performance性能

measuring method测试方法

19

4.19

Component solvent

Resistanc

耐溶剂性

No visible damage.

Performance accorder

4.2.1~4.2.5

无可见损伤

按照4.2.1 ~ 4.2.5性能



Solvent to be used: 使用的溶剂

30±5%isopropyl alcohol

and 70±5%fluxional compound

30±5%异丙醇和70±5%微化物

Solvent temperature:溶剂温度 23±5℃

The capacitor shall be immerged in solvent for 5±0.5seconds.电容器应浸没在溶剂中5±0.5秒。

Recovery time: 恢复时间8hours

20

4.20

Solvent resistance

of the marking

标志耐溶剂性

The marking shall be legible

标志应清晰

Solvent to be used: 使用的溶剂

30±5%isopropyl alcohol

and 70±5%fluxional compound

30±5%异丙醇和70±5%微化物

Solvent temperature:溶剂温度23±5℃

The capacitor shall be immerged in solvent for 5±0.5seconds and its markshall be wiped with pledget for 10times. 电容器应浸没在溶剂中5±0.5秒,用纱布擦拭标志10
